Description
bass crossover pedal American Bass AB-3X Crossover High-Precision Audio Divider for Superior Sound: AB-3XDescription Specifications AB 3X Crossover High Precision Audio Divider SKU: AB 3X Introducing the AB 3X Crossover from American Bass the essential tool for delivering unmatched audio clarity and precision. Tailored for the discerning audiophile, this crossover effortlessly divides your music into distinct frequency bands, ensuring that each speaker in your system plays the frequencies for which it's best suited. By doing so, it creates a harmonious

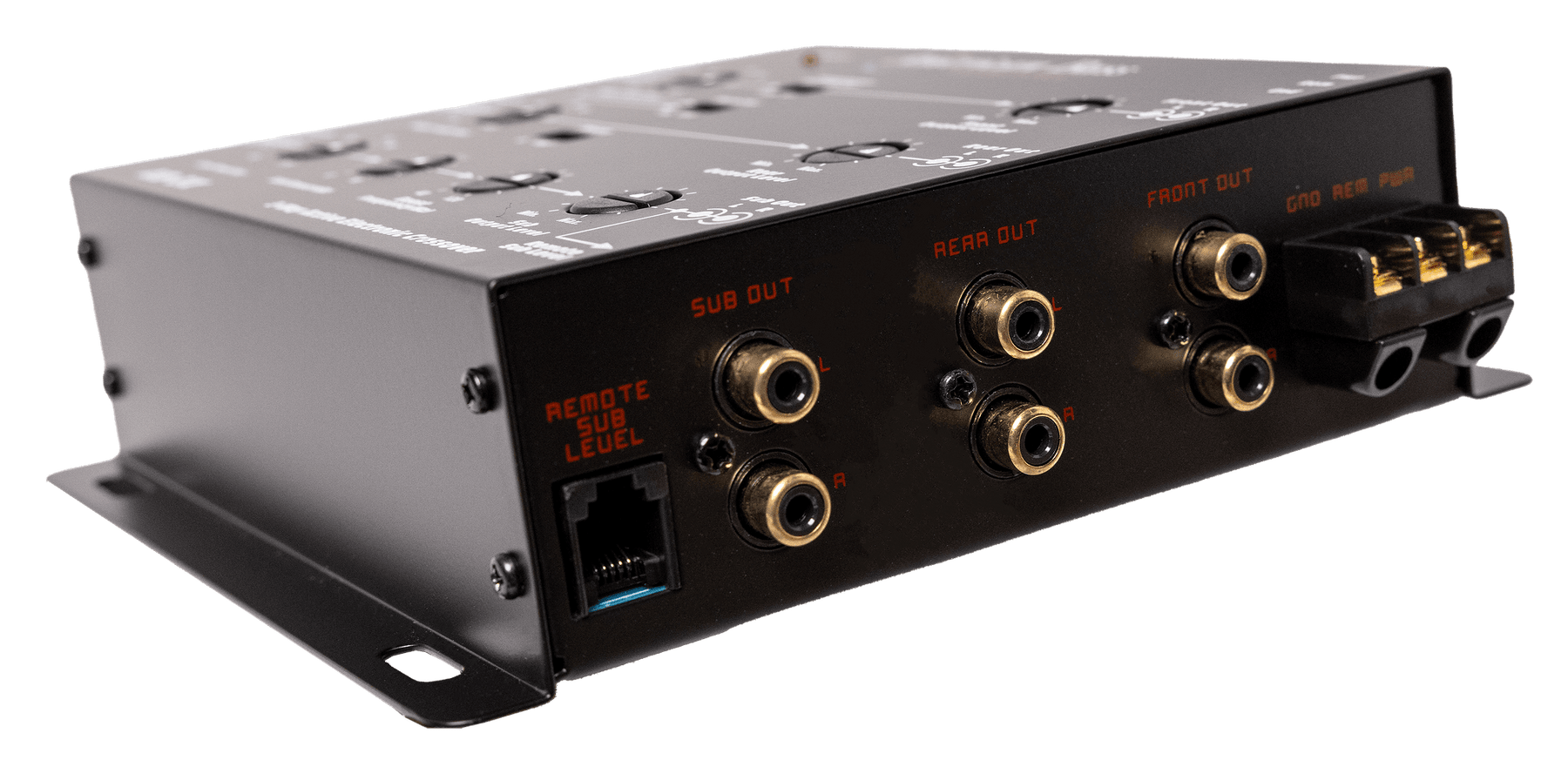

AB-3X Crossover High-Precision Audio Divider
SKU: AB-3X
| FRONT HIGH PASS (x1) | 35Hz-400Hz |
| (x20) | 700Hz-8KHz |
| REAR HIGH PASS | 35Hz-400Hz |
| SUBWOOFER LOW PASS/FREQUENCY | 45Hz-250Hz (-18dB/OCT) |
| OUTPUTS LEVEL | 8V PEAK |
| FREQUENCY RESPONSE | 10-50KHz(-3dB) |
| S/N RATIO | 110dB |
| THD | 0.01% |
| INPUT IMPEDANCE | 20K OHMS |
| OUTPUT IMPEDANCE | LESS THAN 150 OHMS |
| CHANNEL SEPARATION | MORE THAN 70dB |
| VARIABLE SUBSONIC FILTER | ON/OFF WITH -18dB/OCT. AT 40 Hz |
| LOW PASS/HIGHPASS | -18BD/OCT |
| POWER SOURCE | 11-15 VOLTS DC NEGATIVE GROUND |
| MAX OUTPUT VOLTAGE | - |
| PRE GRAPHIC FREQUENCY | - |
| EQUALIZATION RANGE | - |
