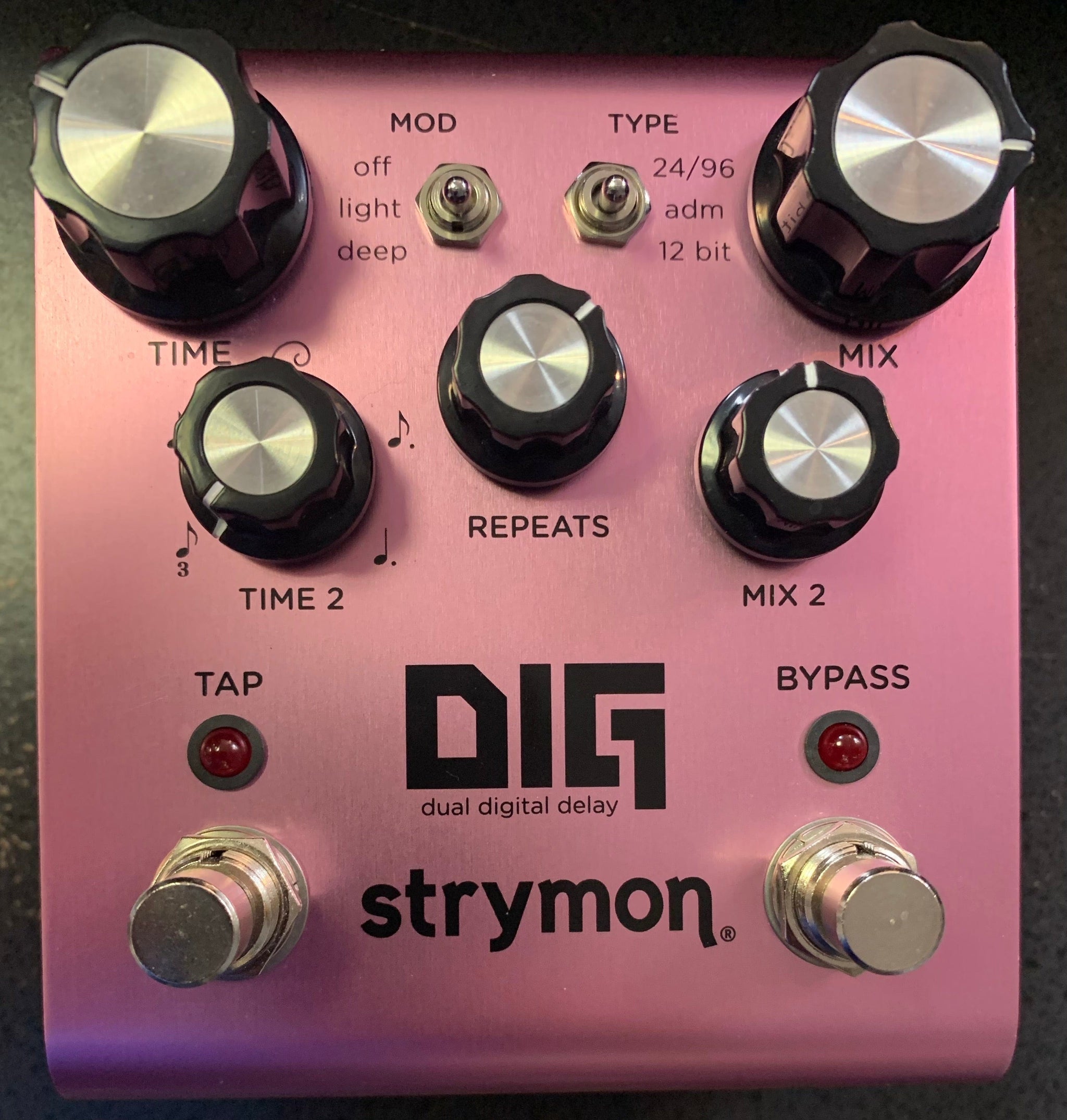

strymon guitar pedals Strymon Dig V1: Exceptional Dual Delay Pedal for Musicians

strymon guitar pedals Strymon Dig V1: Exceptional Dual Delay Pedal for MusiciansFeatures SOUND DESIGN Two simultaneous, integrated delays, with unique digital rack delay voicings Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats One modern and two classic digital delay voicings: 24 96, adm, 12 bit Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter Three choices for delay line modulation: Off, Light, Deep Secondary functions for deep control: Delay 1

Features

SOUND DESIGN

• Two simultaneous, integrated delays, with unique digital rack delay voicings

• Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats

• One modern and two classic digital delay voicings: 24/96, adm, 12 bit

• Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter

• Three choices for delay line modulation: Off, Light, Deep • Secondary functions for deep control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats • Selectable Free Mode disables subdivisions and synchronization

• Press and hold Circular Repeats effect • 20ms - 1.6s delay range (40ms - 3.2s with Half Note Delay 1 Subdivision) INS, OUTS, & SWITCHES

• High impedance mono input, with selectable TRS stereo input

• Stereo output

• Three signal routing configurations: Series, Parallel, Ping Pong

• Selectable Kill Dry mode

• Tap tempo and Bypass footswitches

• Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote control of tempo), or Favorite switch (to save a Favorite preset) MORE

• +8dBu maximum input level easily handles instrument and line signals

• Premium analog front end and output section

• Analog dry path for a zero latency dry signal that is never converted to digital

• Super high performance SHARC DSP in a compact form factor

• 32-bit floating point processing • Strong and lightweight anodized carnation pink aluminum chassis

• Designed and Built in the US

Specifications

Input Impedance: 1Meg Ohm

Output Impedance: 100 Ohm

Signal to Noise: 115 dB typical

A/D & D/A: 24-bit 96kHz

Max Input Level: +8dBu

Frequency Response: 20Hz to 20kHz

DSP performance: 1596 MegaFLOPS

Bypass Switching: True Bypass (electromechanical relay switching) or high-quality, transparent Analog Buffered Bypass (selectable)

Dimensions: 4.5” deep x 4” wide x 1.75” tall

Power Requirements

Input Voltage: Maximum 9V DC

Polarity: Center Negative

Required Current: Minimum 250mA
