Description

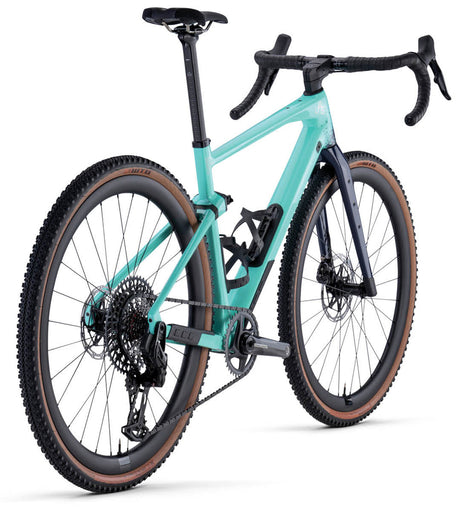

unrestricted gravel bike BMC UNRESTRICTED 01 THREE GRAVEL BIKE - SRAM FORCE AXS X0 EAGLE MIXForget the confines of the current gravel world and explore the wild unknowns. The URS 01 THREE build is equipped with the SRAM Force AXS groupset, paired with the SRAM X0 Eagle transmission. It includes our reliable CRD 400 carbon wheels topped with 44mm WTB Raddler tires, our MTT suspension stem and downtube storage. A bike built to take you wherever you want it to! Frameset Frame: URS 01 Premium Carbon with MTT Tuned Compliance Concept Gravel
Frameset
Frame:
URS 01 Premium Carbon with MTT | Tuned Compliance Concept Gravel | Gravel+ Geometry | ICS Technology Stalth Cable Routing | Integrated Storage | Fender and Rack Mounts | 12 x 142mm Thru-Axle | UDH Droput
Fork:
URS 01 Premium Carbon with Tuned Compliance Concept Gravel | ICS Technology Integrated BRake & Hub Dynamo Routing | Cargo Mounts | Fender and Rack Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Suspension
Rear Suspension:
Micro Travel Technology Stays
Cockpit
Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
Handlebar:
Easton EA70 AX
Seat
Seatpost:
URS 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Saddle:
WTB Gravelier Steel SL | Medium
Drivetrain
Crankset:
SRAM Force 1 DUB WIDE
Chainrings:
38T
Cassette:
SRAM X0 Eagle Transmission XS-1295
Cassette Size:
10-52T
Chain:
SRAM X0 Eagle Transmission Flattop
Rear Derailleur:
SRAM X0 Eagle Transmission
Shifters:
SRAM Force eTap AXS
Gears:
1 x 12
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Force eTap AXS
Rotors:
SRAM Centerline X
Rotor Size (F/R):
180 / 160mm
Wheels
Rims:
CRD-400 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
CRD-400
Tires:
WTB Raddler | 44mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Additional Information
Tire Clearance:
47mm
Weight without Pedals:
9.3 Kg
ASTM Classification:
Level 2
System Weight Limit:
120kg
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165-170 | 168-178 | 176-188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 420 | 420 | 420 | 440 | 440 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69 | 69 | 69.5 | 69.5 | 69.5 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | ||||
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Length | 72 | 72 | 72 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
